WALL CLADDING SYSTEMS

Go to Built-Up Systems

Single Skin

Single skin wall cladding uses one layer of profiled metal sheeting, usually attached directly to the building’s structural supports. This cost-effective solution is often found in industrial, commercial, and agricultural buildings.

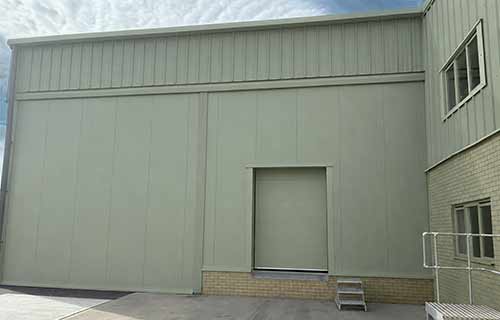

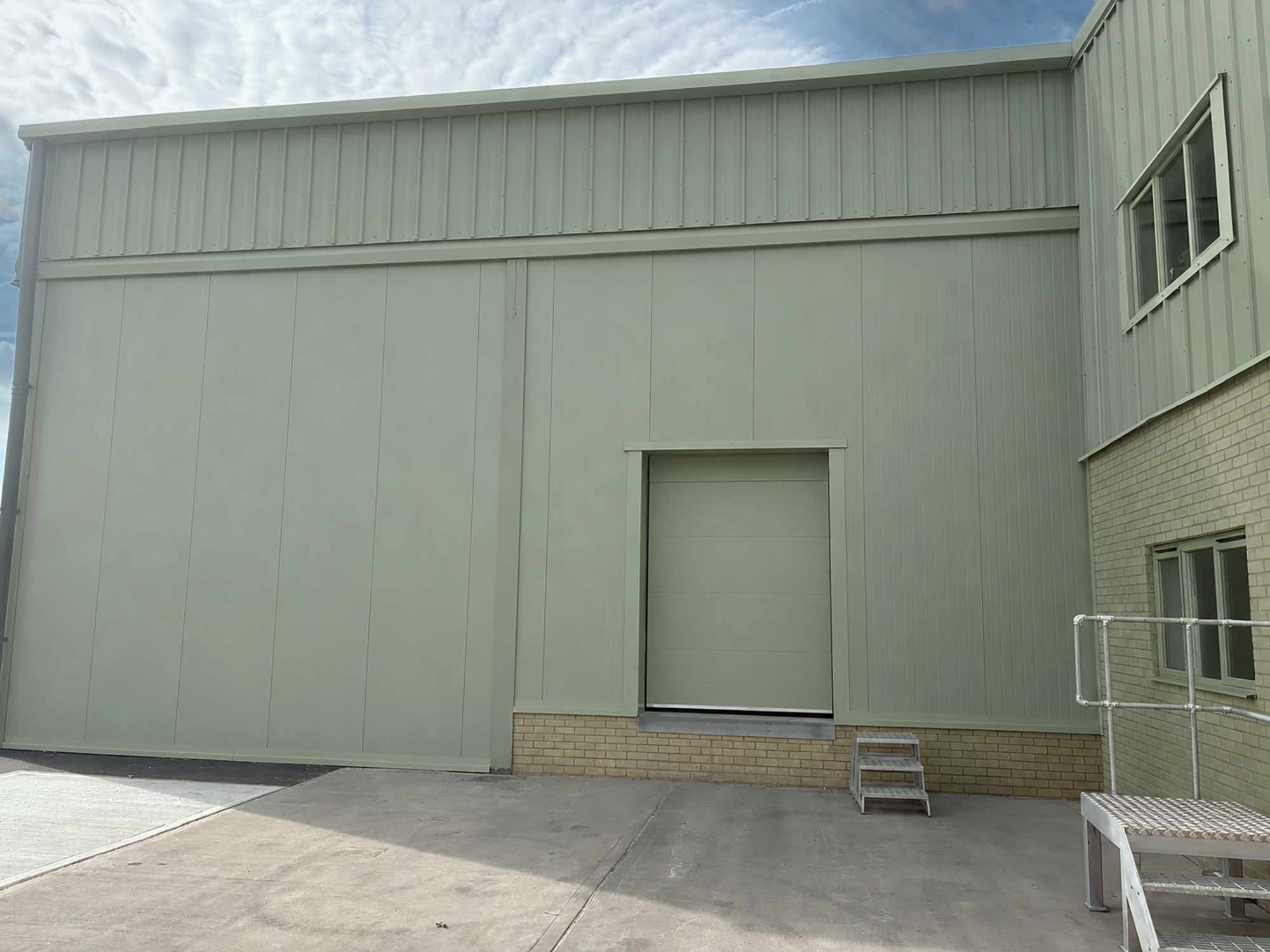

RIX FARM / STOURGARDEN (GREAT HORKESLEY)
Brief:
To re-purpose old prep/welfare and yard areas by installing new composite panels.
Type of sheet:
Kingspan KS 1100CS & KS1000RW
Colour:
Moorland Green
Frame:
Existing steel
Insulation:
40mm & 100mm
Area:
85 m2
  • P and F Cladding - single skin - Rix Farm - Great Horkesley
Back to top

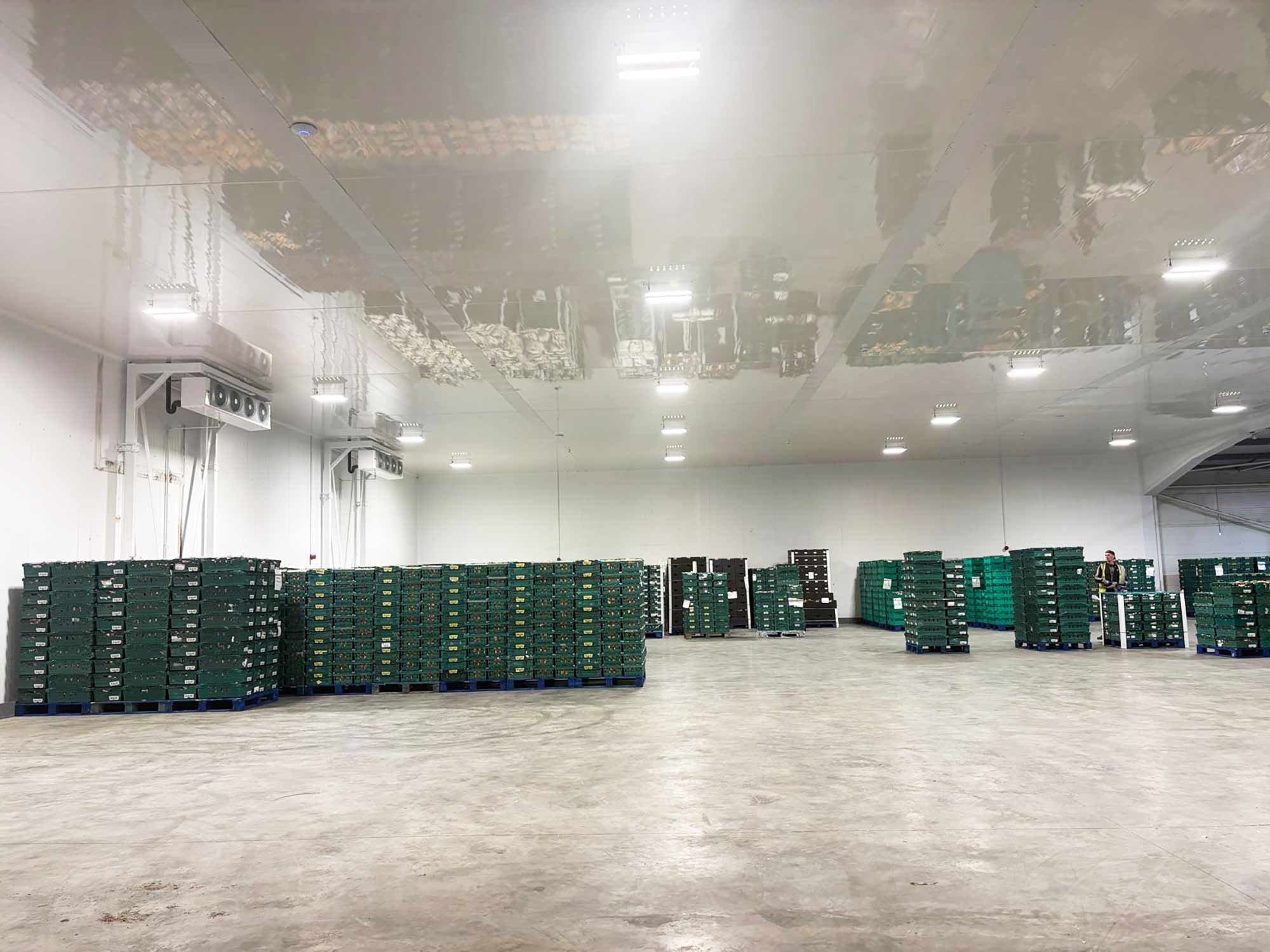

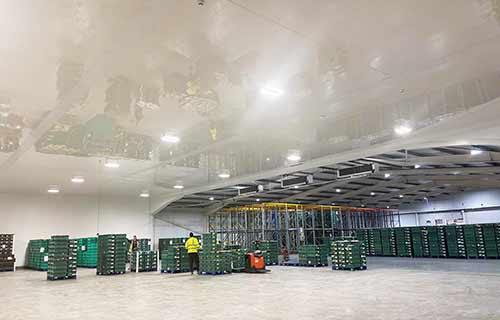

RIX FARM / STOURGARDEN (GREAT HORKESLEY)
Brief:
To install PVC sheets to ceiling.
Type of sheet:
PVC C-Plank 407
Colour:
White
Frame:
Existing
Area:
1,000 m2

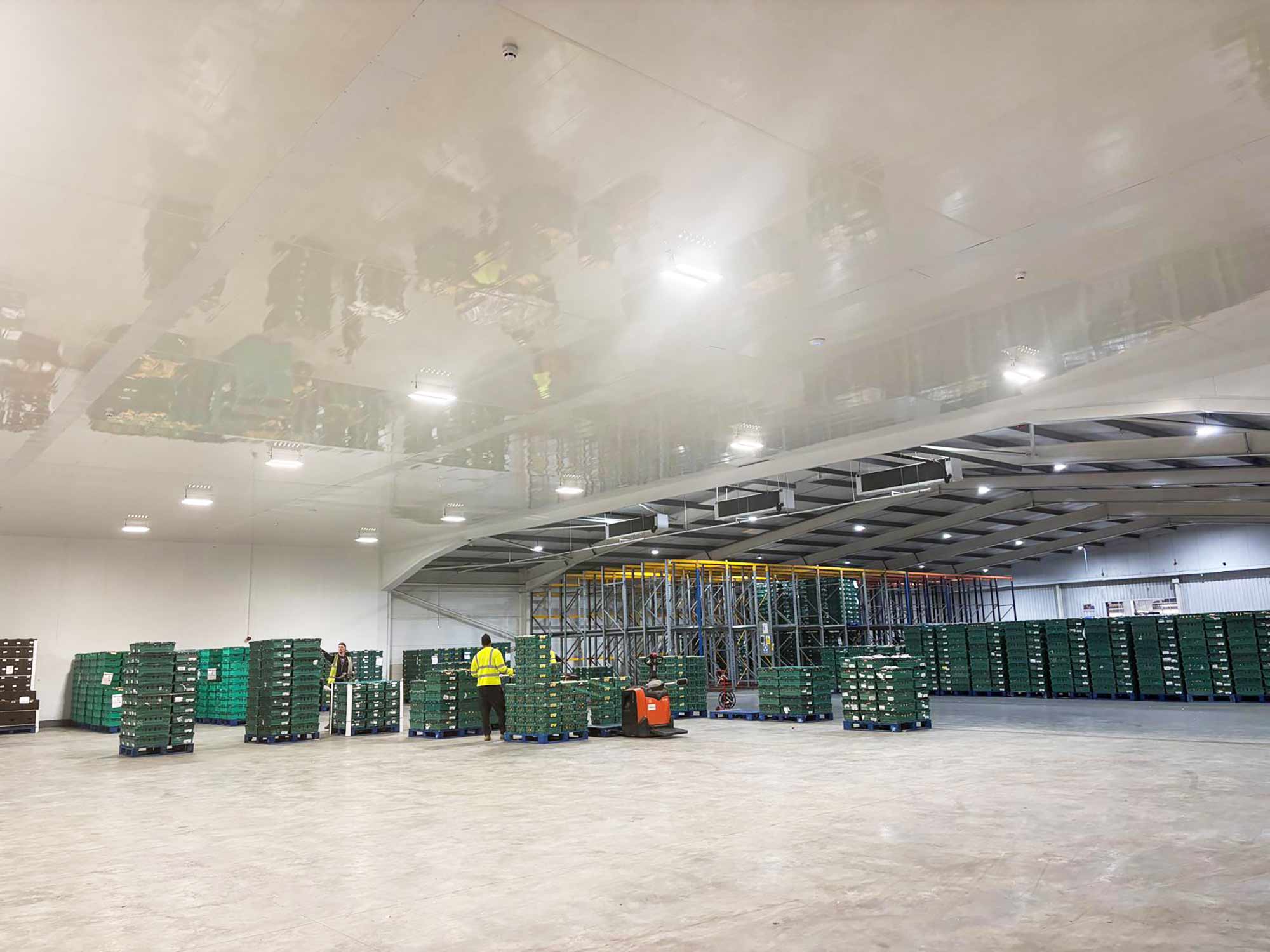

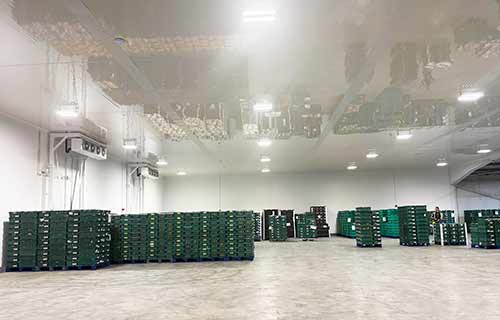

  • P and F Cladding - single skin - Rix Farm ceiling - Great Horkesley
  • P and F Cladding - single skin - Rix Farm ceiling - Great Horkesley
Back to top
CROMWELL INDUSTRIAL ESTATE (LONDON)
Brief:
To install new Single Skin Cladding and associated flashings onto existing frame to create new aesthetics.
Type of sheet:
Single Skin
Colour:
Aztec Yellow with Goosewing Grey flashings
Frame:
Brick / metal
Area:
200 m2

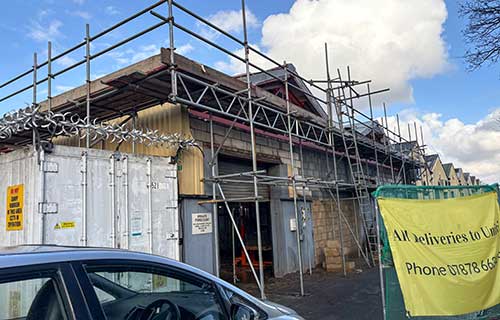

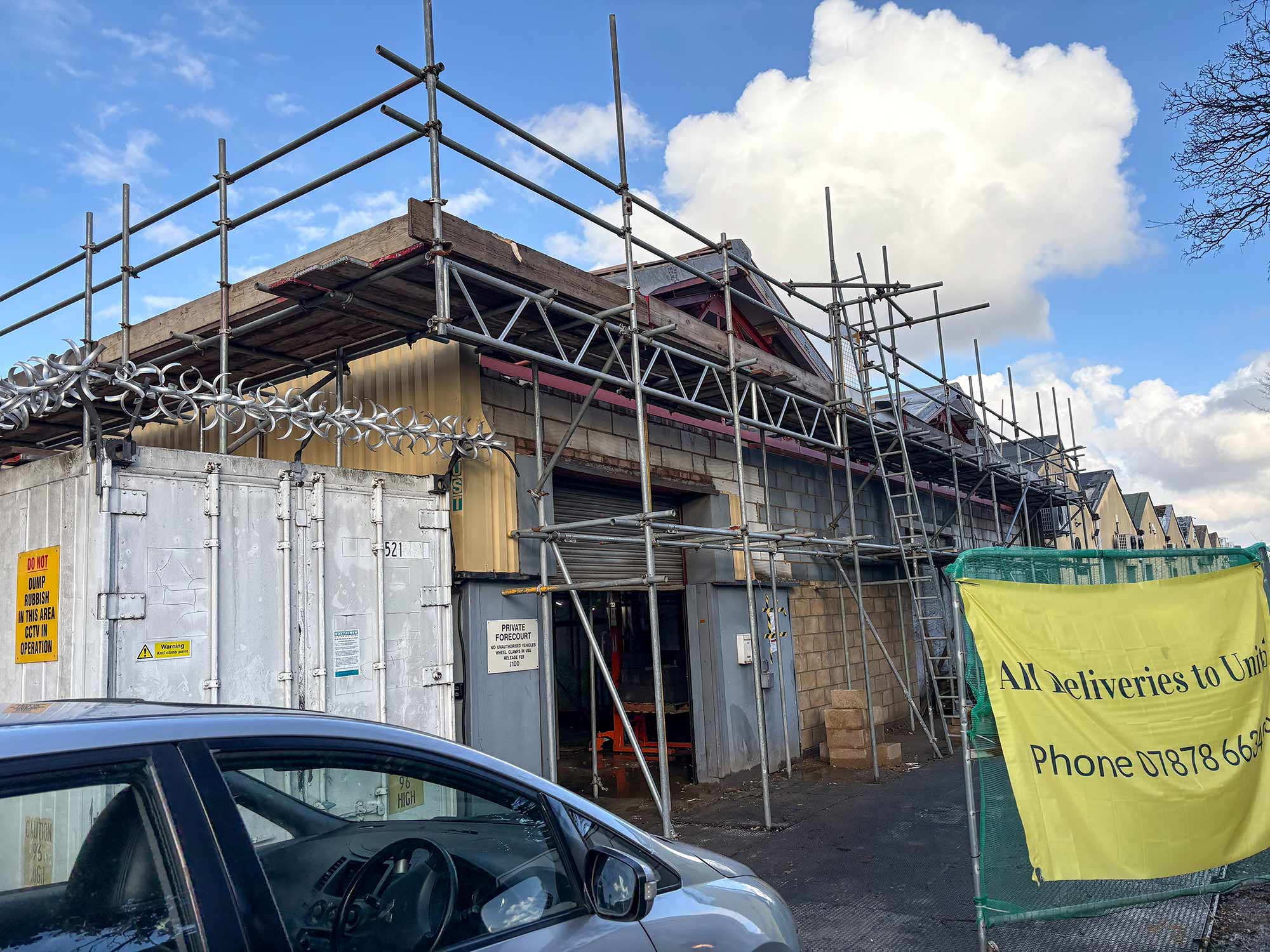

  • P and F Cladding - single skin - Cromwell Ind Est - London - before
before

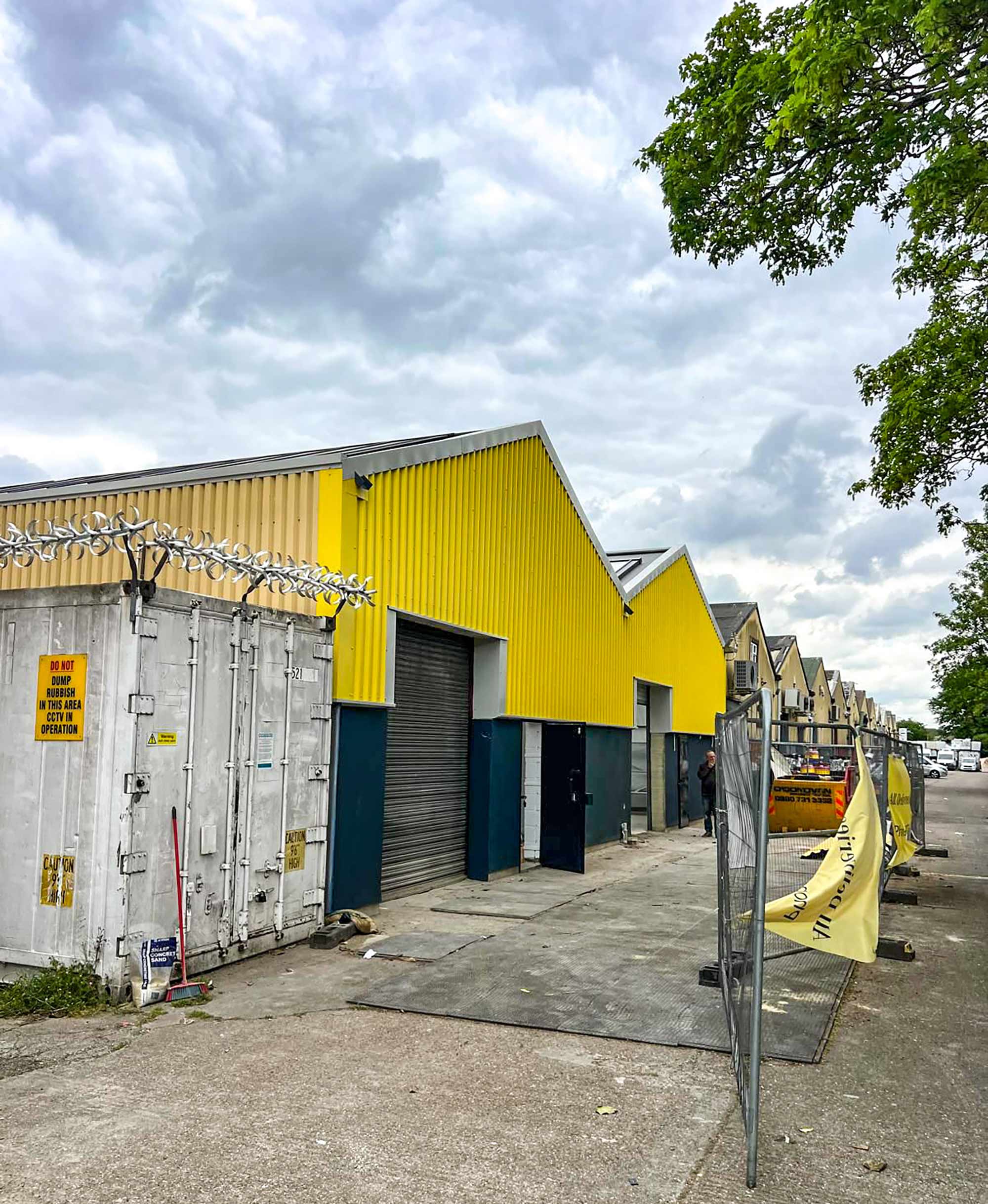

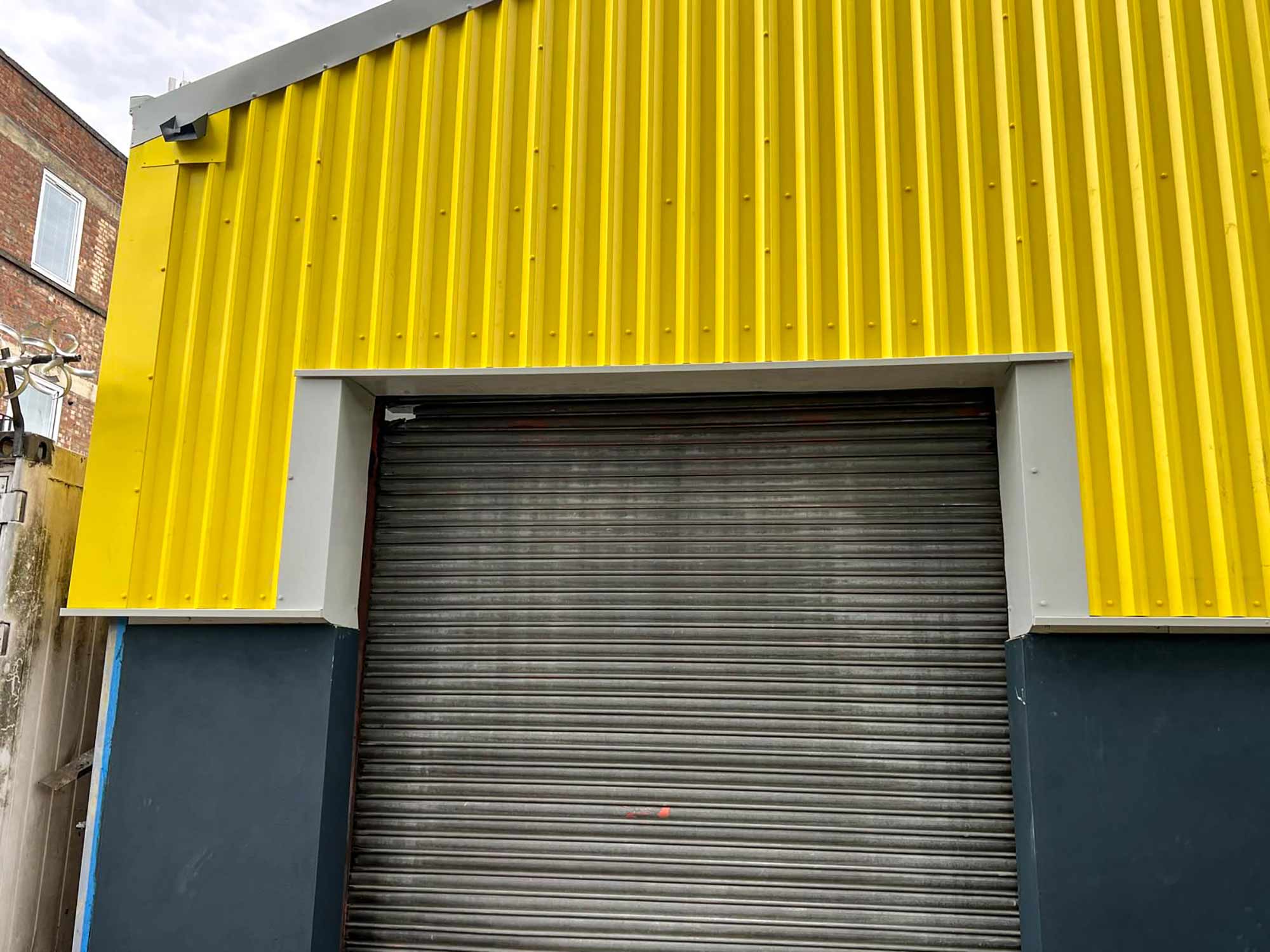

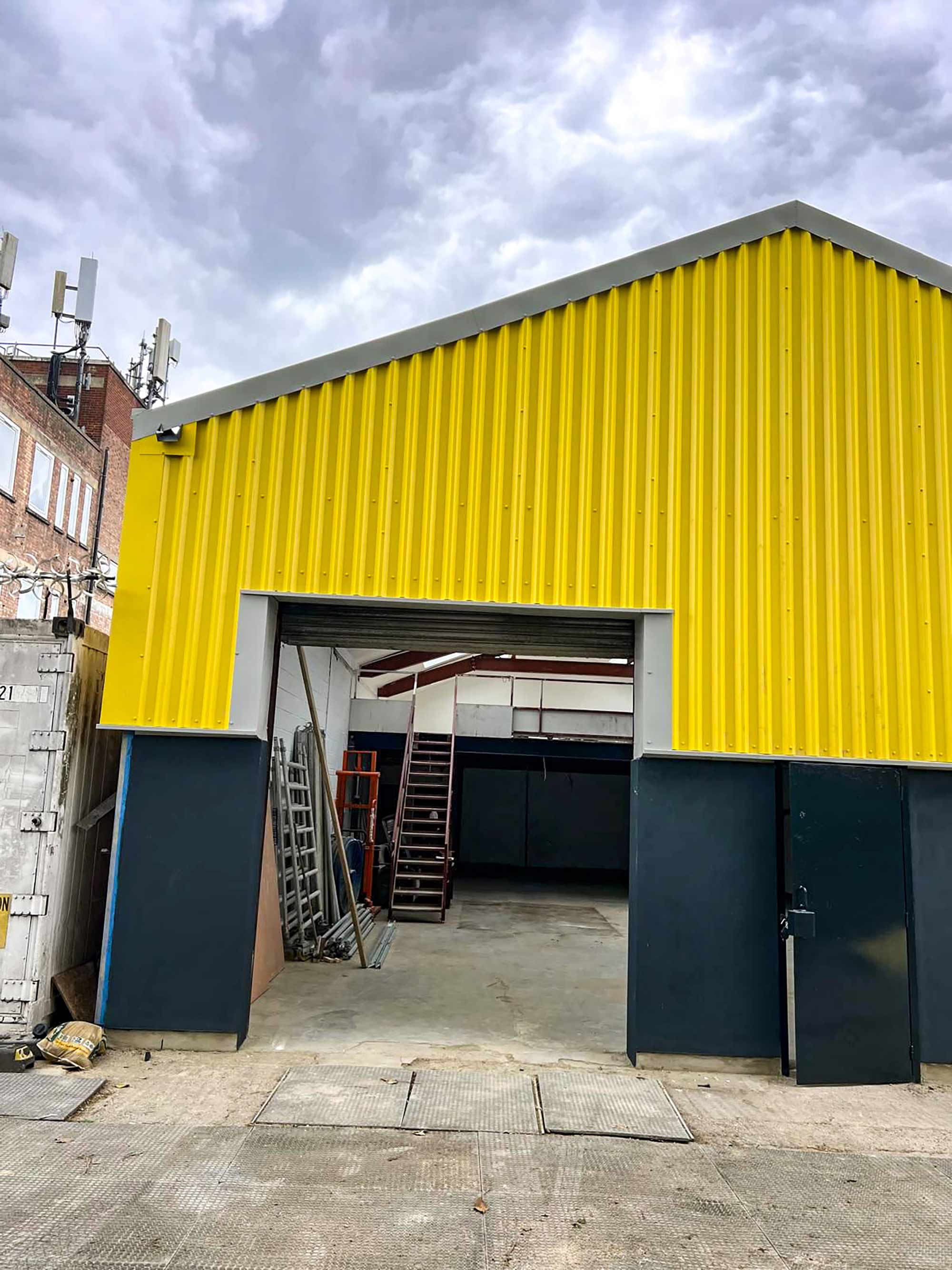

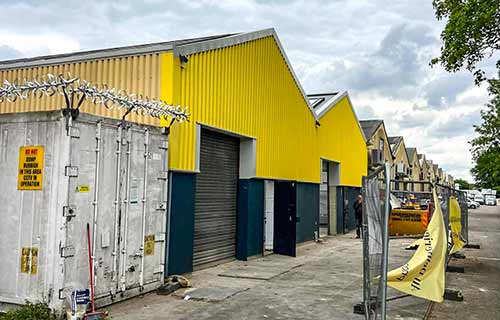

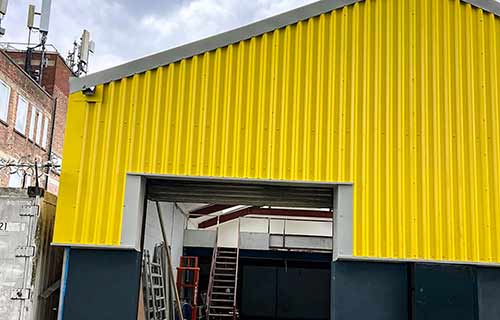

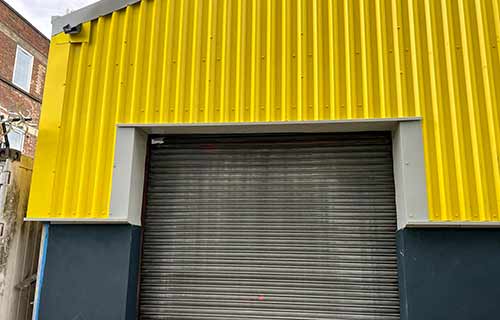

  • P and F Cladding - single skin - Cromwell Ind Est - London - after
after
  • P and F Cladding - single skin - Cromwell Ind Est - London - after
after
  • P and F Cladding - single skin - Cromwell Ind Est - London - after
after
Back to top

TINKERS BARN (BRESSINGHAM)


RIBA Suffolk Design Award Winner 2019. Tata single skin corrugated sheeting for walls and roof on counter battens with ventilated fillers. All bespoke discreet flashing details and weathering detail for roof lights.


Andrew Hughes Architects:
info@andrewhughesarchitects.com


www.ribasuffolk.com

  • P and F Cladding - RIBA Suffolk Design Awards 2019 - Tinkers Barn
  • P and F Cladding - RIBA Suffolk Design Awards 2019 - Tinkers Barn
  • P and F Cladding - RIBA Suffolk Design Awards 2019 - Tinkers Barn
  • P and F Cladding - RIBA Suffolk Design Awards 2019 - Tinkers Barn
  • P and F Cladding - RIBA Suffolk Design Awards 2019 - Tinkers Barn
Back to top

NISSEN HUT (NORTH IPSWICH)


Strip and re-sheet for Nissen hut.

  • P and F Cladding - Ipswich - re-sheet nissen hut
  • P and F Cladding - Ipswich - re-sheet nissen hut
Back to top

Built-Up System

Built-up wall cladding systems include various configurations, such as twin-skin and standing seam weather sheet. These systems typically feature an internal liner sheet and an external weather sheet, a vapour control layer (VCL) and/or a breather membrane with insulation placed between the two layers to meet thermal performance requirements. Assembled on site, they offer flexibility in design and performance. The key difference lies in how the outer sheet is fixed: twin-skin systems use exposed fasteners, while standing seam systems use concealed fixings for a cleaner, more weather-resistant finish.

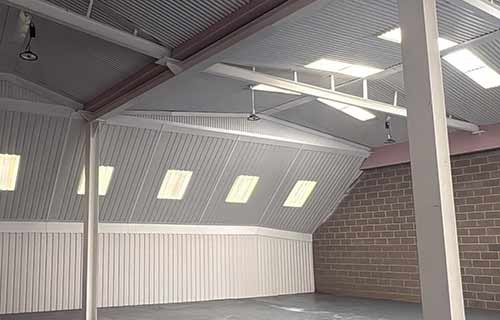

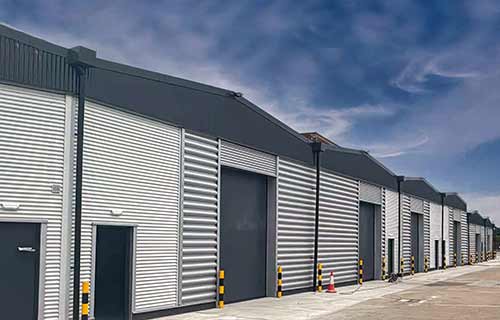

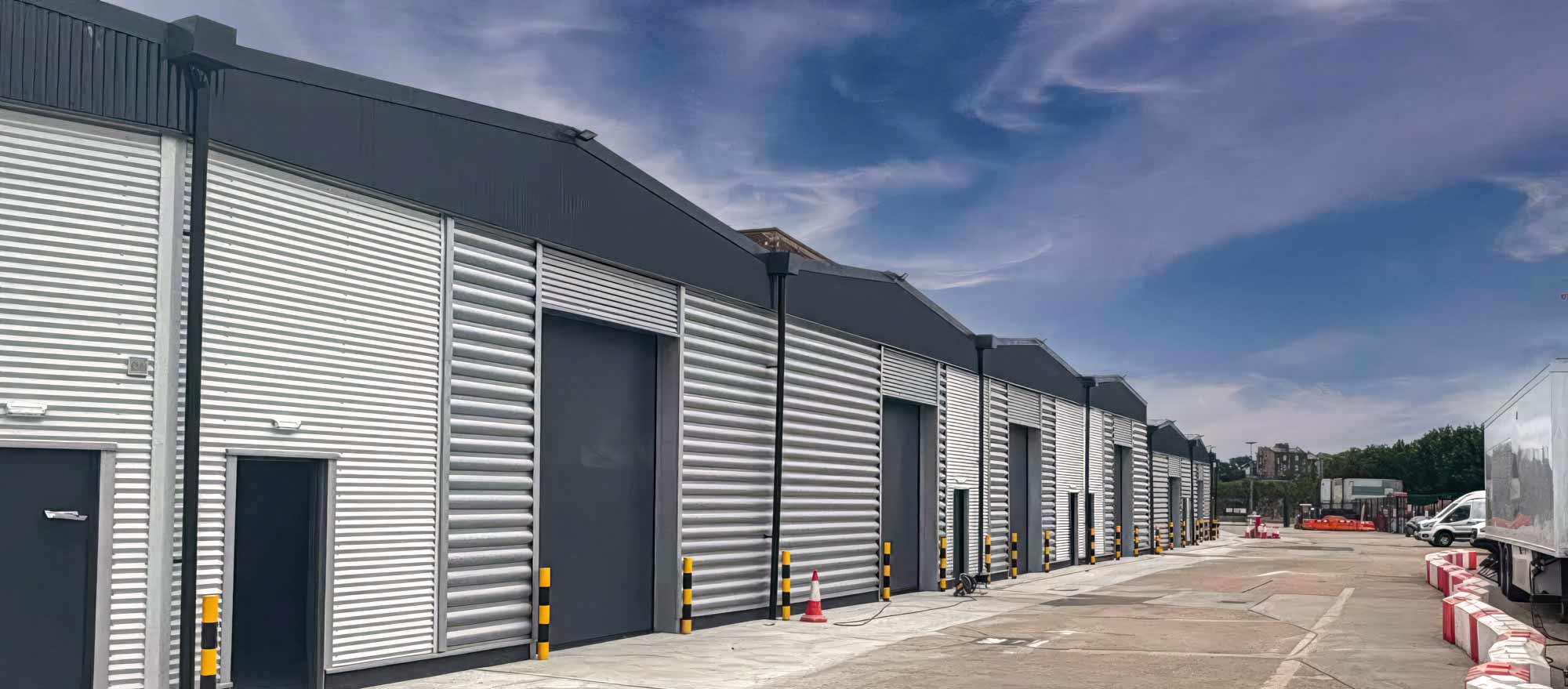

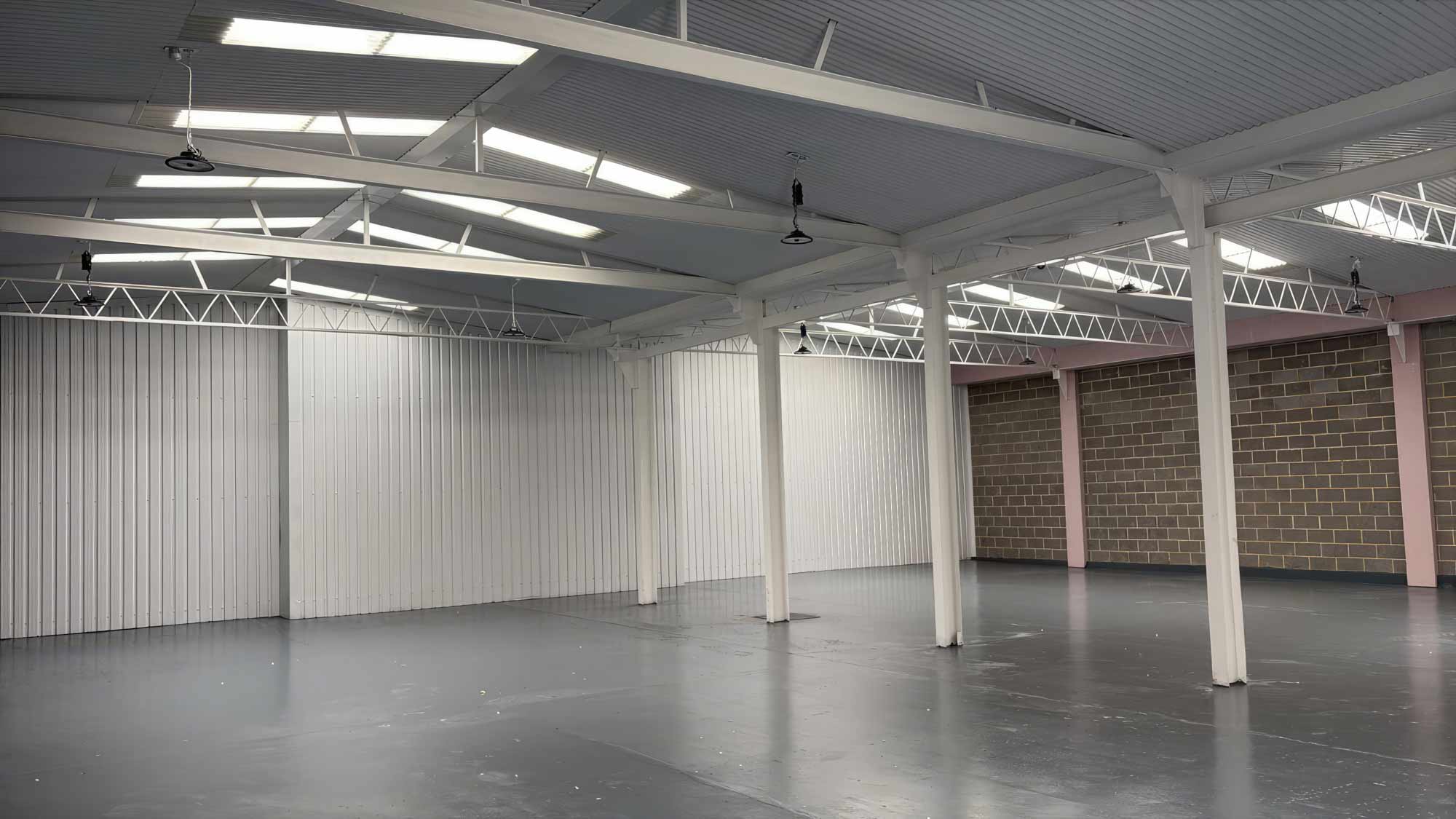

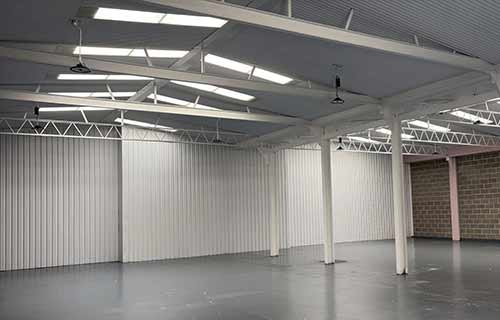

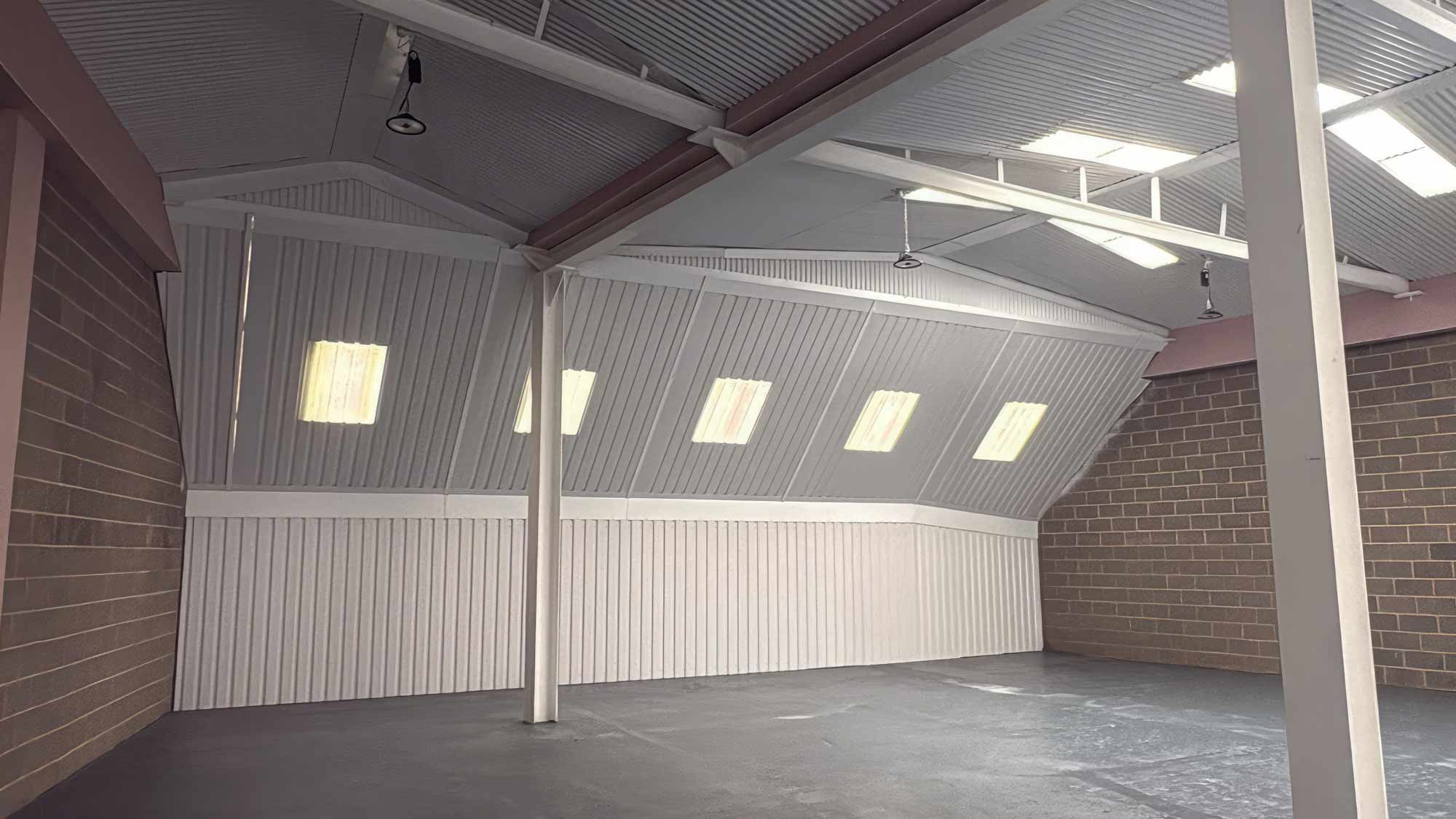

KENTISH TOWN
Brief:
To reclad historic units to increase U-value and aesthetic appeal.
Type of sheet:
Corrugated Single Skin
Colour:
Multiple
Frame:
Steel
Insulation:
180 mm
Area:
External 750 m2
Internal 1327 m2

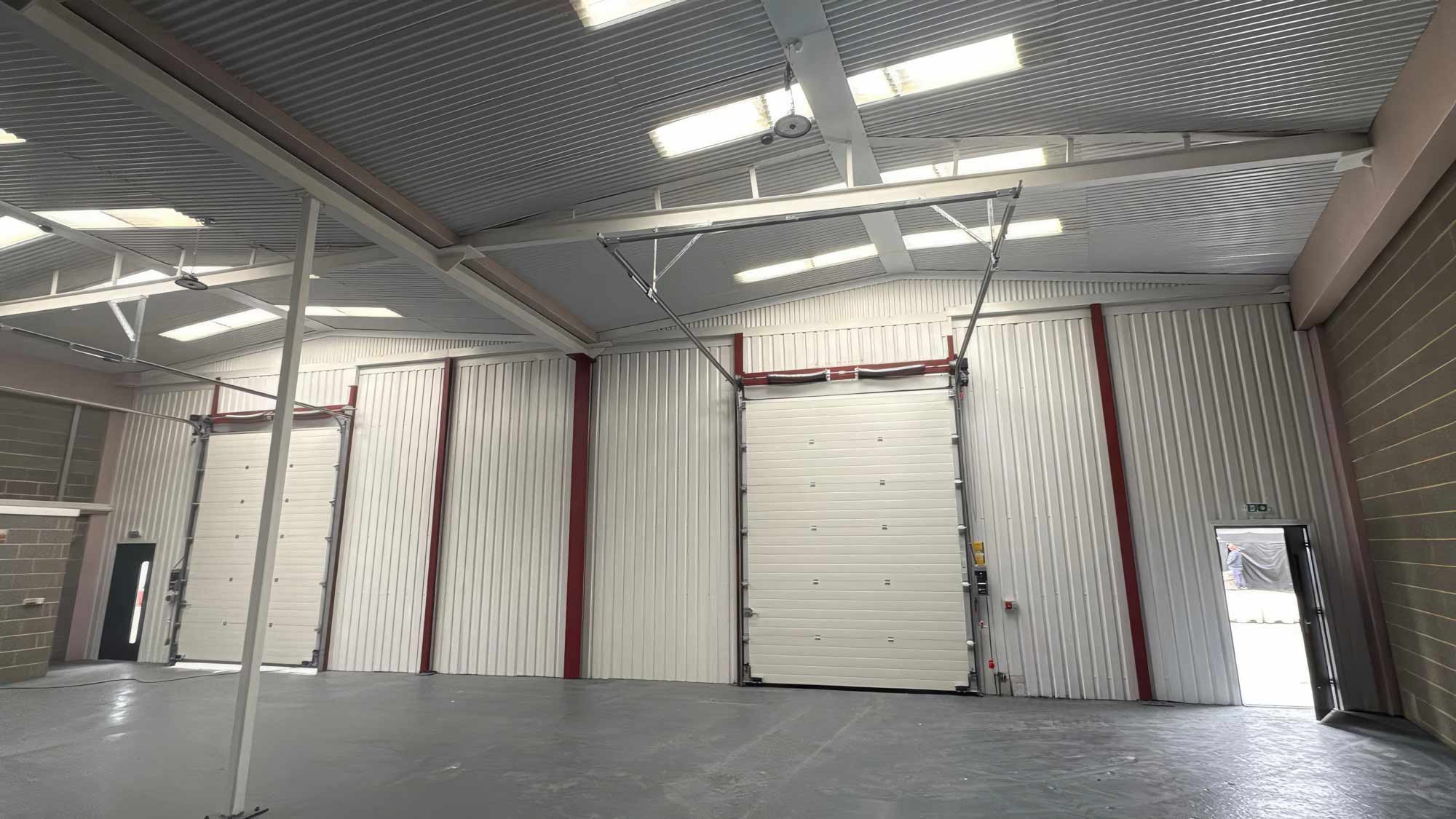

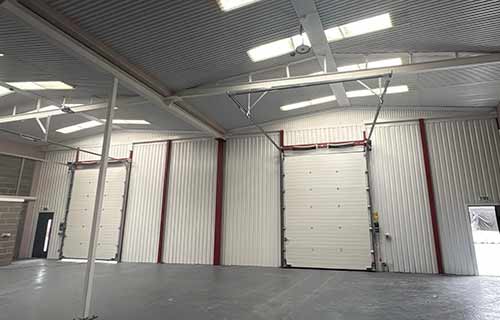

  • P and F Cladding - Kentish Town
  • P and F Cladding - Kentish Town
  • P and F Cladding - Kentish Town
  • P and F Cladding - Kentish Town
Back to top

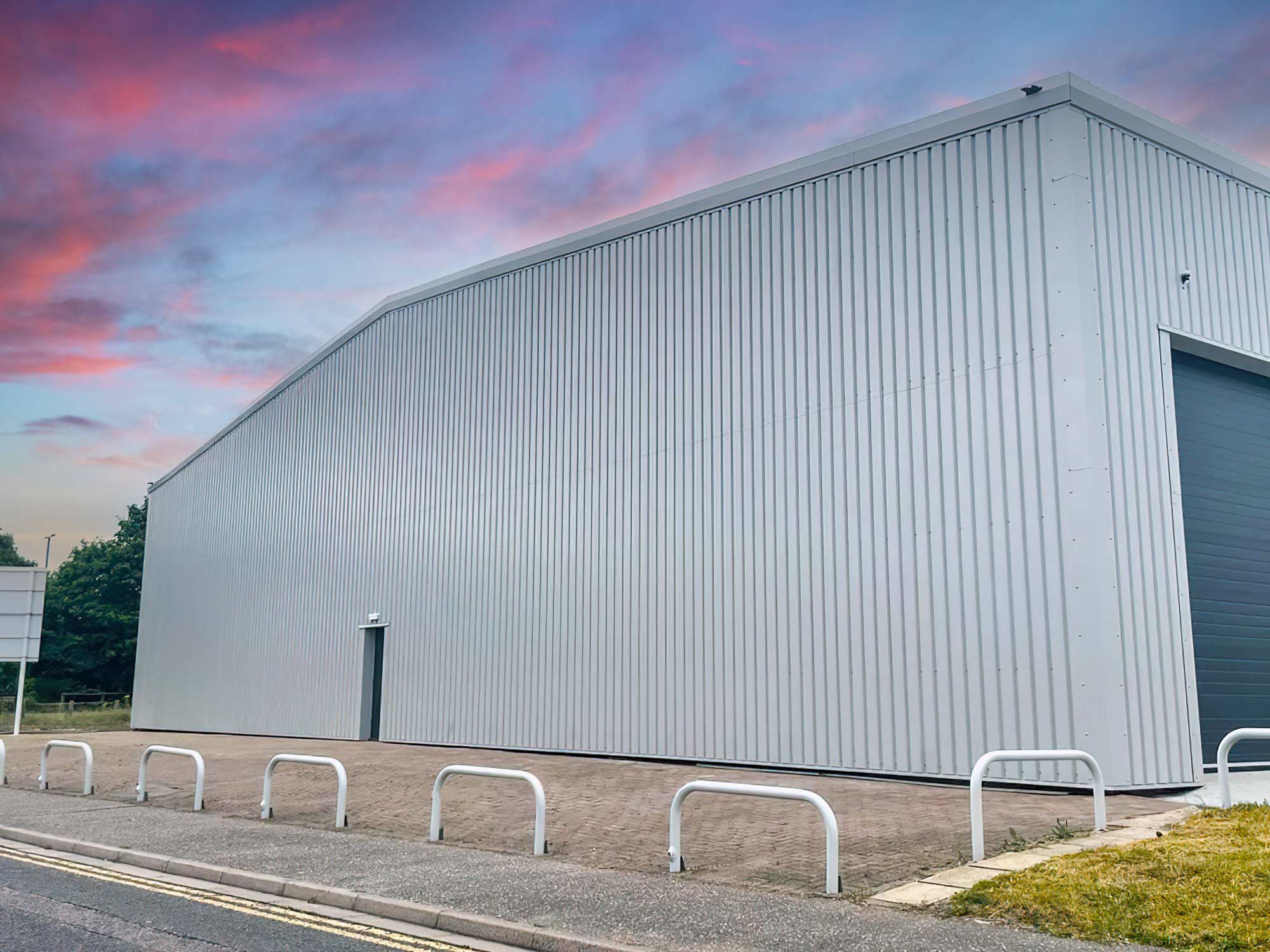

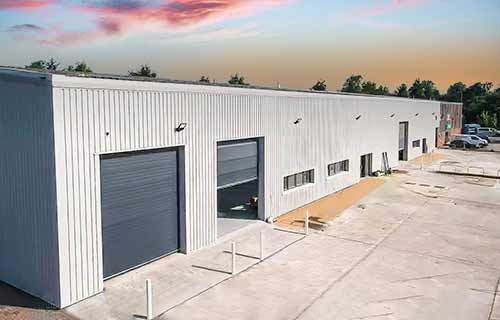

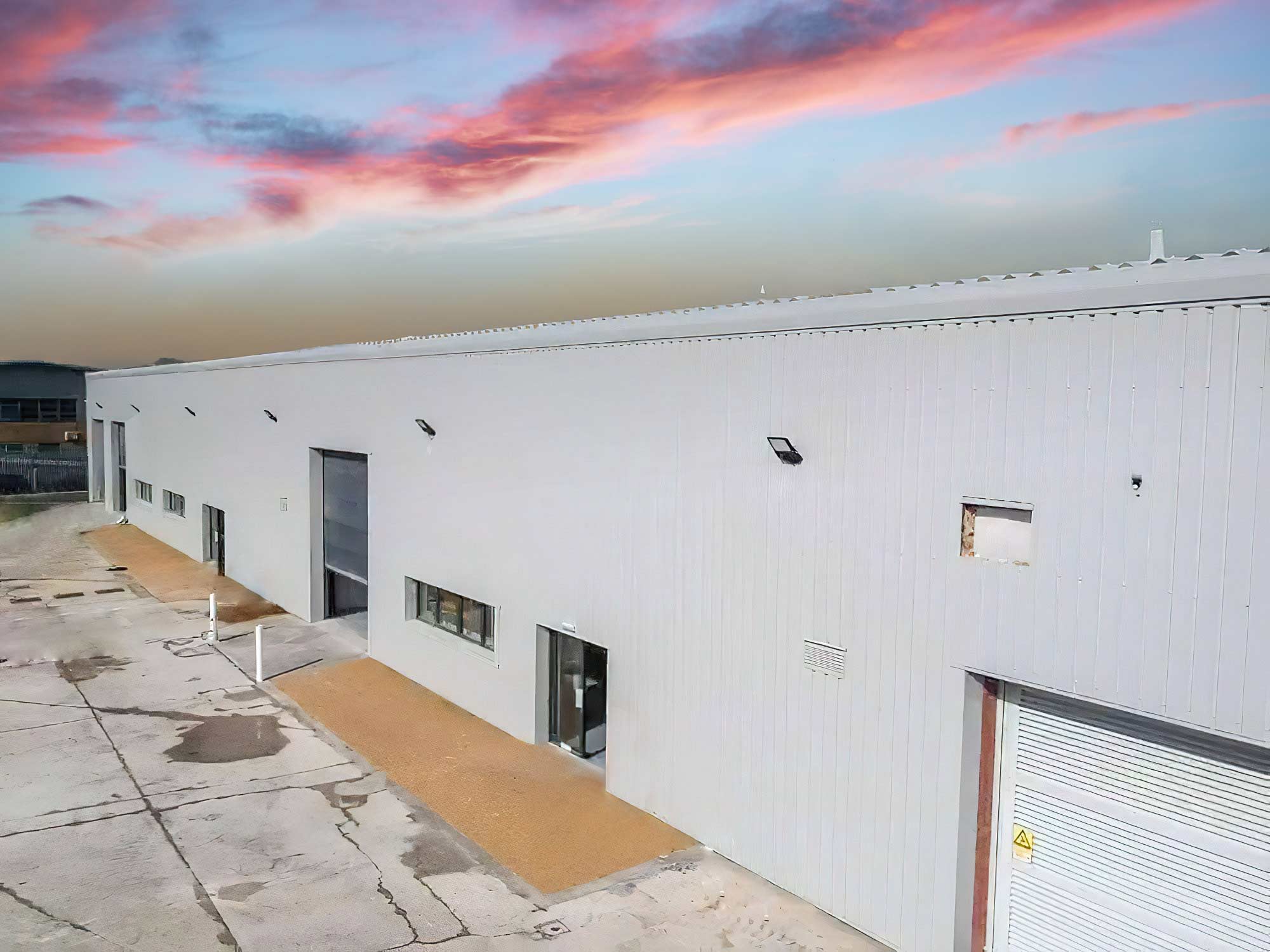

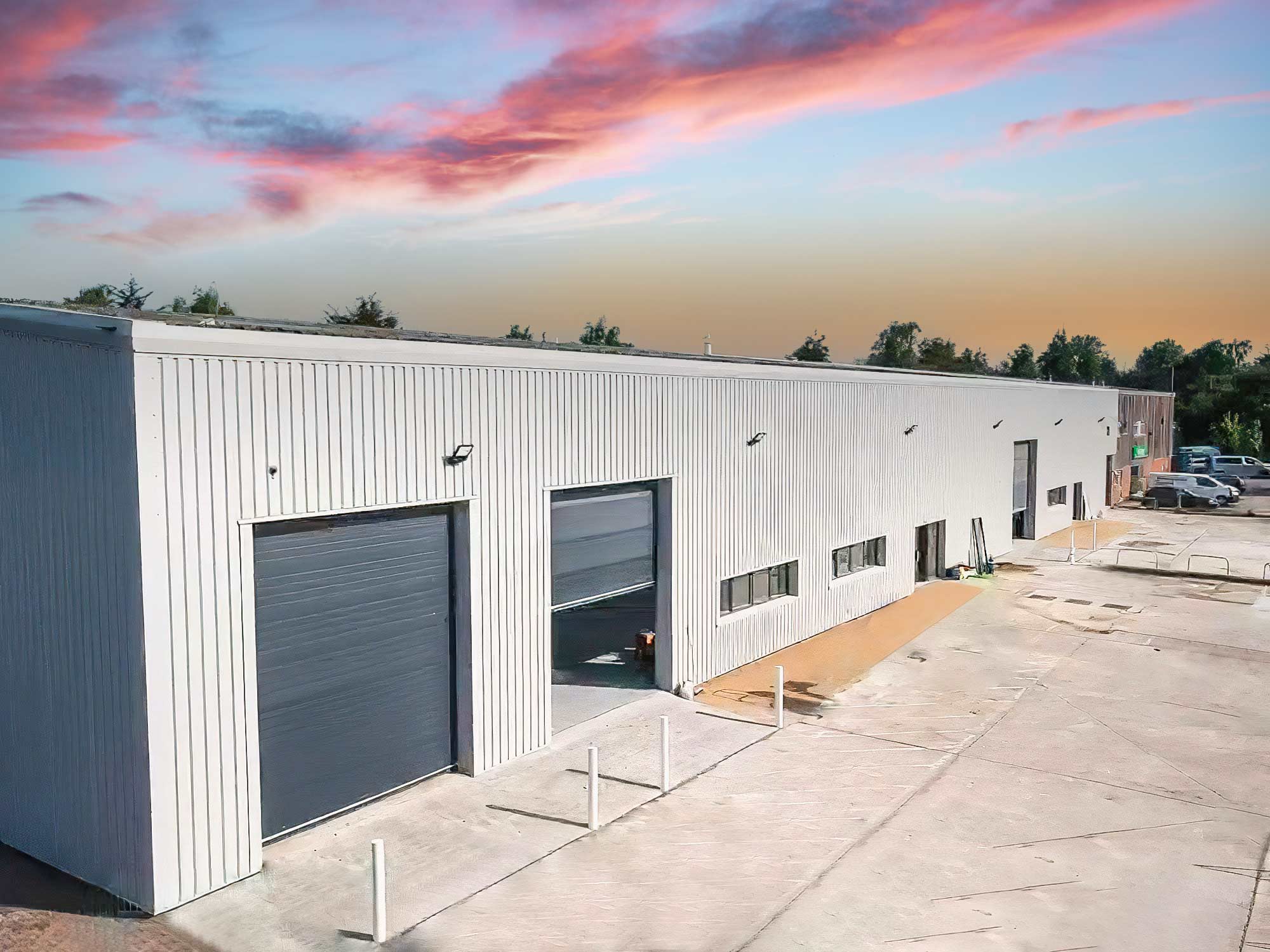

DUKES PARK (CHELMSFORD)
Brief:
To remove existing Built Up cladding and rails system. Replace with updated version to increase the U-value and aesthetic appeal.
Type of sheet:
32/1000 Single Skin
Colour:
Goosewing Grey
Frame:
Bar and Bracket system
Insulation:
160 mm
Area:
1100 m2

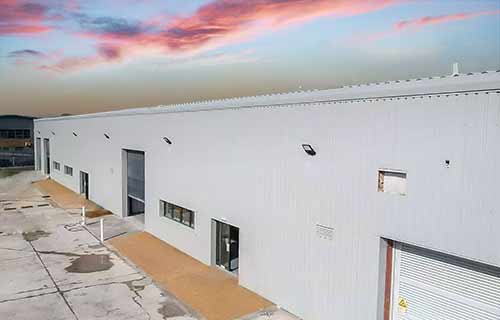

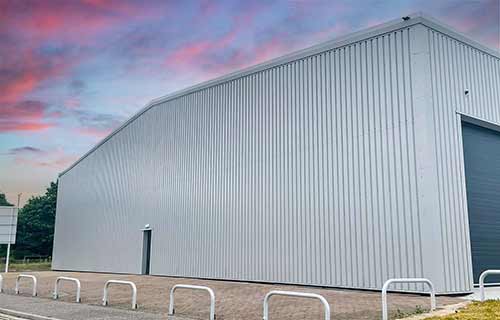

  • P and F Cladding - Dukes Park - cladding system, rails, liner, bar and bracket
  • P and F Cladding - Dukes Park - cladding system, rails, liner, bar and bracket
  • P and F Cladding - Dukes Park - cladding system, rails, liner, bar and bracket
Back to top

PRIVATE RESIDENCE (KINGS LYNN)


Corrugated Black Plastisol Roof and Wall sheeting with bespoke PPC Verge, Ridge and Dormer details. Elastex Solo GRP waterproofing around roof light details. EPDM ClassicBond Flat Roof in two locations with associated rainwater goods.

  • P and F Cladding - Kings Lynn - private residence
Back to top
